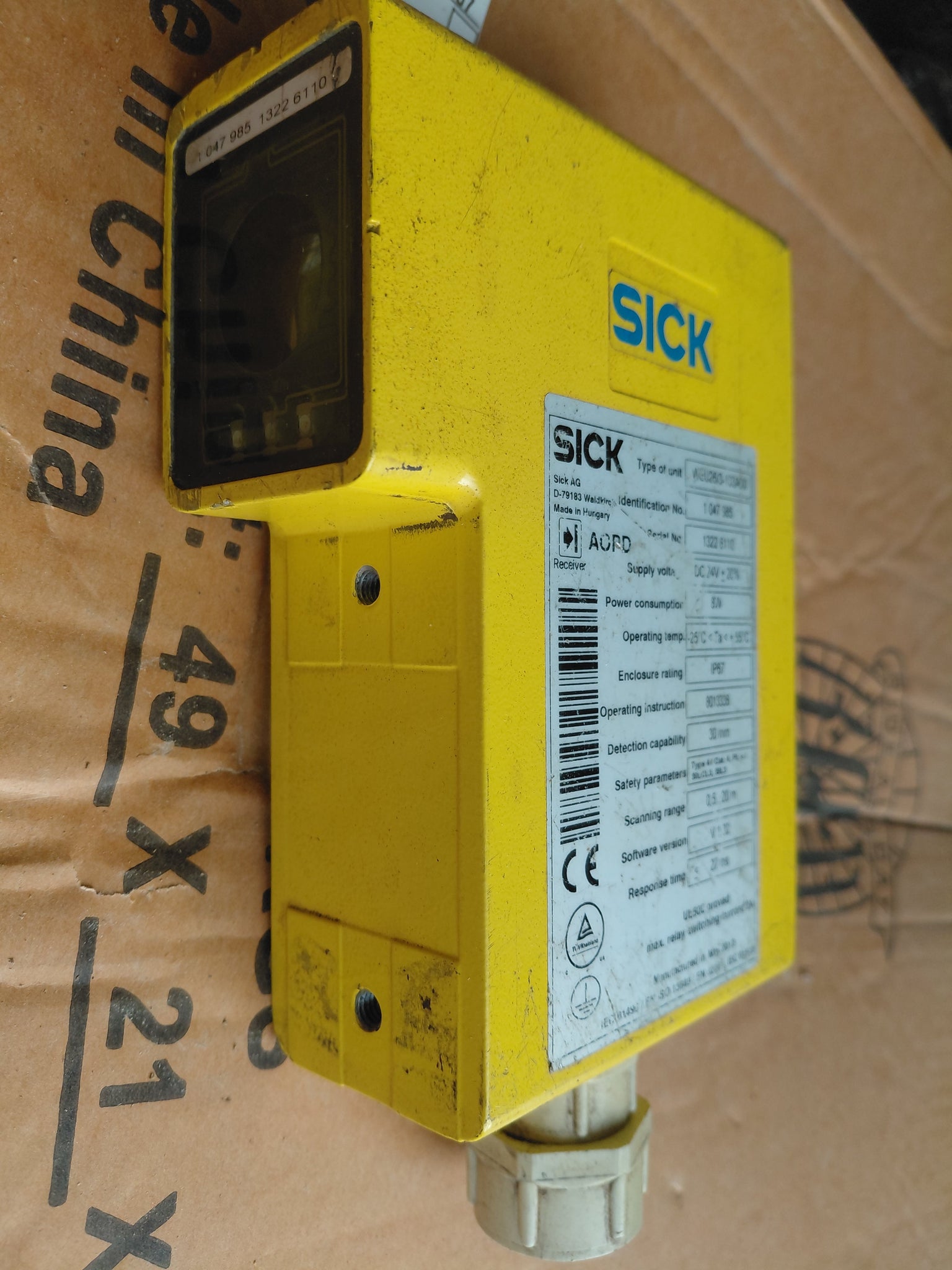

The SICK WEU26/3-103A00 is a safety laser scanner receiver (AOPD) designed for industrial safety applications.
- Type: WEU26/3-103A00
- Identification No.: 1 047 985
- Serial No.: 1322 6110
- Manufacturer: SICK AG, D-79183 Waldkirch, Germany — Made in Hungary
- Supply Voltage: DC 24V ±20%
- Power Consumption: 8W
- Operating Temperature: -25°C < Ta < +55°C
- Enclosure Rating: IP67
- Operating Instruction: 8013336
- Detection Capability: 30 mm
- Safety Parameters: Type 4 / Cat. 4, PL e / SILCL3, SIL3
- Scanning Range: 0.5…20 m
- Software Version: V 1.32
- Response Time: ≤ 22 ms
- Certifications: CE, UL50C proved, max. relay switching current 2A
- Standards: IEC 61496 / EN ISO 13849 / EN 62061 / IEC 61508
- Manufactured: May 2013
