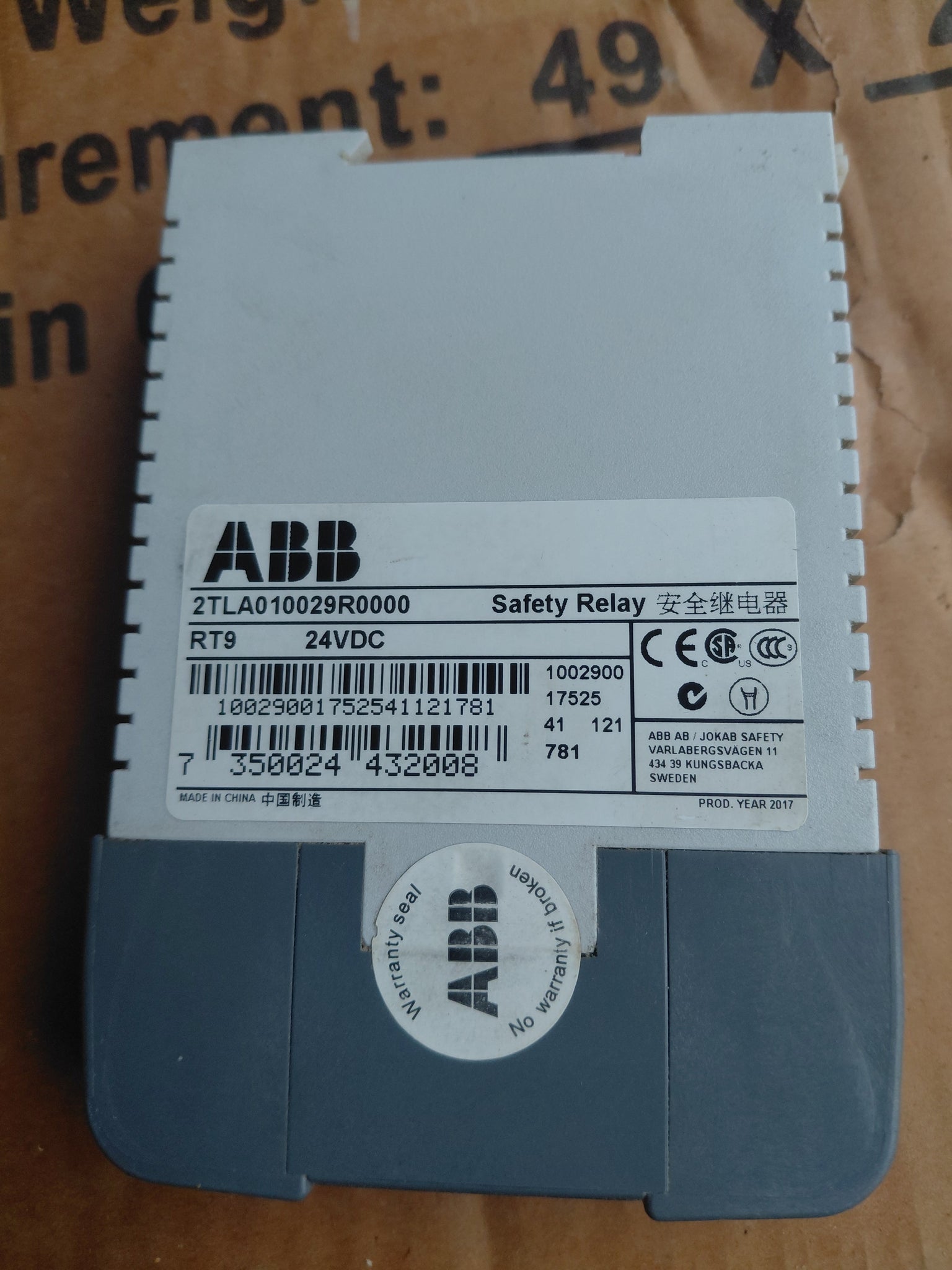

The ABB Jokab Safety RT9 is a compact, versatile safety relay designed for machine safety applications. Part number 2TLA010029R0000, operating at 24VDC.
Key Features
- Supports one-channel and two-channel input configurations
- Compatible with contact mats and safety strips
- Multiple reset options: manual (test), supervised, and automatic reset
- 2 safety outputs (AC-15: 240V 2A / DC-13: 24V 1A)
- Info output: 0/24VDC, 0–250mA

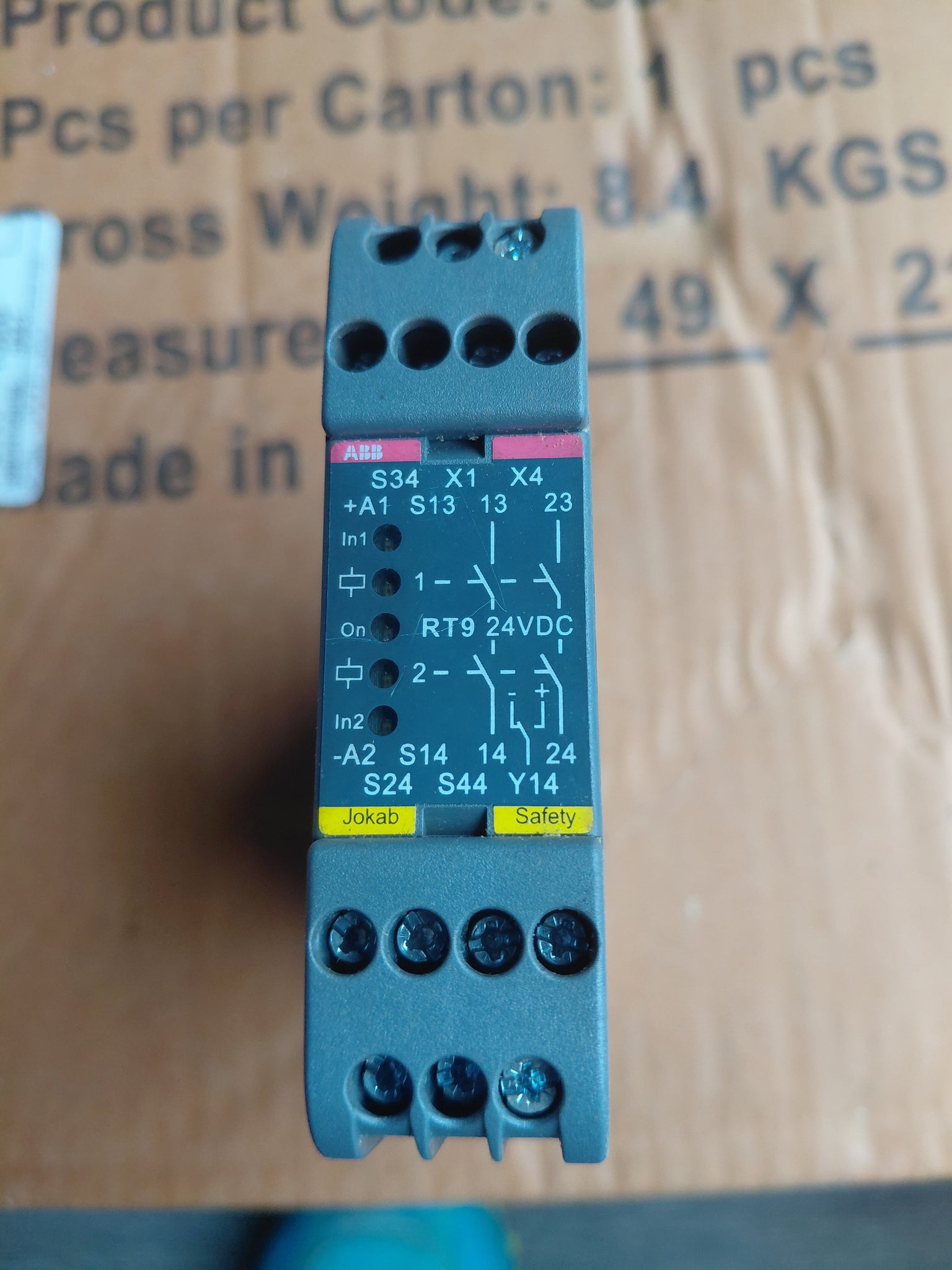

- Terminals: A1, A2, S13, S14, S24, S34, S44, X1, X4, Y14, 13, 14, 23, 24
- DIN rail mountable
- Manufactured by ABB AB / Jokab Safety, Sweden
Specifications
- Part Number: 2TLA010029R0000
- Model: RT9
- Supply Voltage: 24VDC
- Safety Outputs: AC-15 240V 2A / DC-13 24V 1A
- Info Output: 0/24VDC, 0–250mA
- Certifications: CE, UL, CCC
- Manufacturer: ABB AB / Jokab Safety, Kungsbacka, Sweden
- Production Year: 2017
